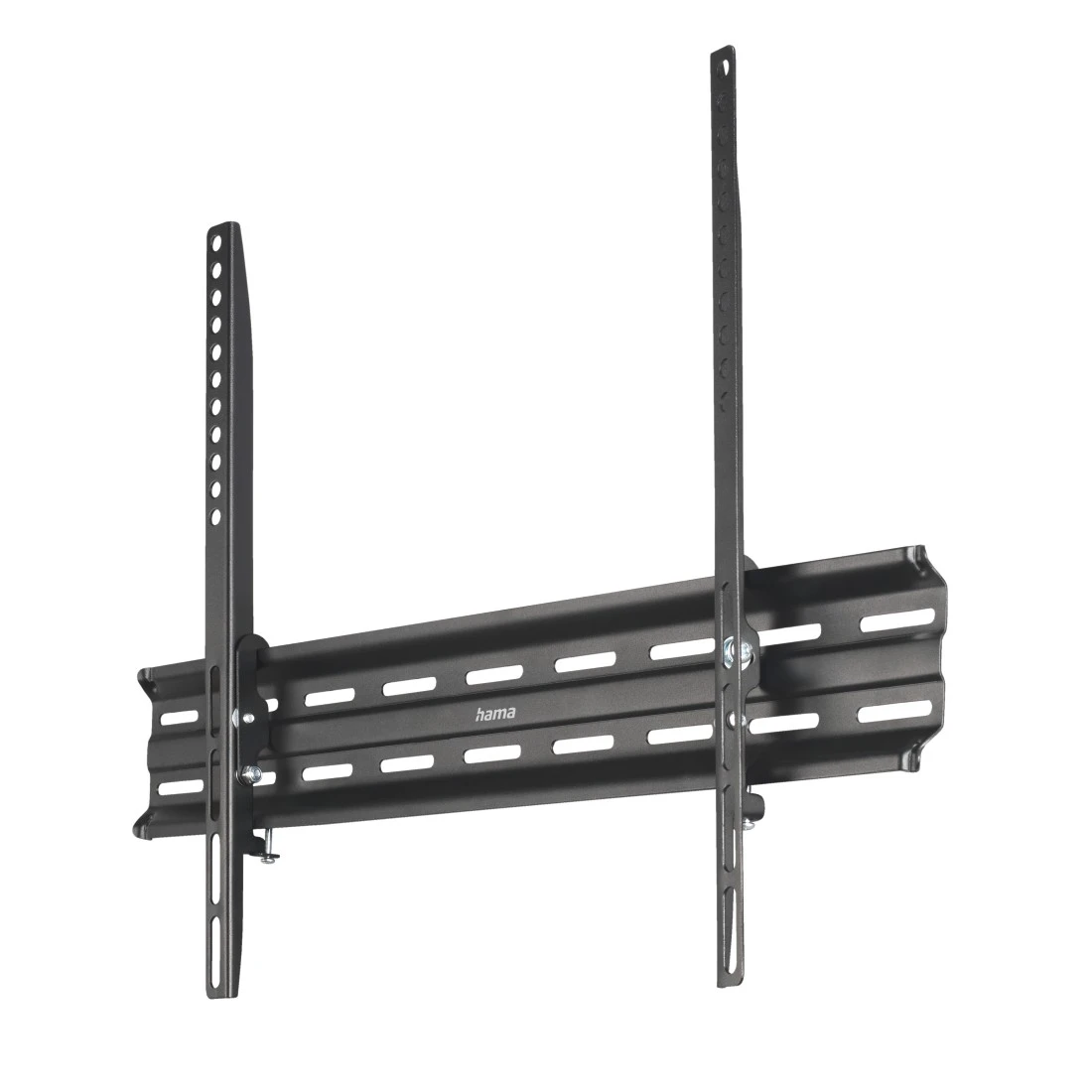

Hama TILT TV Wall Bracket, 1 Star, 600x400, 191 cm (75"), black

4L118108

For the installation of flat screen TVs with a screen size from 81 to 191 cm (32" to 75")

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Easy-Fix system

Quick and easy to position every time: with just one action, you can orientate the TV spontaneously to match your needs - without any tools at all

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour Black
    Shade of colour Black
    Quality
    Quality 1 Star
    Physical Properties
    Additional Functions Spirit level
    Hole Size Attachment Up to M8
    Material Steel Plate
    Maximum Load Capacity 40 kg
    Maximum swivel range 0 °
    Model TV
    number of joints 0
    Projection maximum 2.8 cm
    Projection minimum 2.8 cm
    Rotation 0 °
    Tilt +/- 0 / 10 °
    Size & Weight
    External Dimension (Height) 42 cm
    External Dimension (Width) 62 cm
    Mounting Plate (Length) 62 cm
    Mounting Plate (Width) 9.6 cm
    Screen Dimensions 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 191 cm (75")
    VESA (from-to) 100x100 - 600x400
    VESA Standard 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 400, 600 x 400
    Field of Application
    Recommended Maximum Screen Size 191 cm (75")
    Recommended Minimum Screen Size 81 cm (32")
    Recommended Screen Size 81 - 191 cm (32" - 75")
    Suitable for TV
    Version Tilting
  • More product information
    • For the installation of flat screen TVs with a screen size from 81 to 191 cm (32" to 75")
    • Optimal positioning of the flat screen TV in every room
    • Supports all VESA standards up to 600 x 400

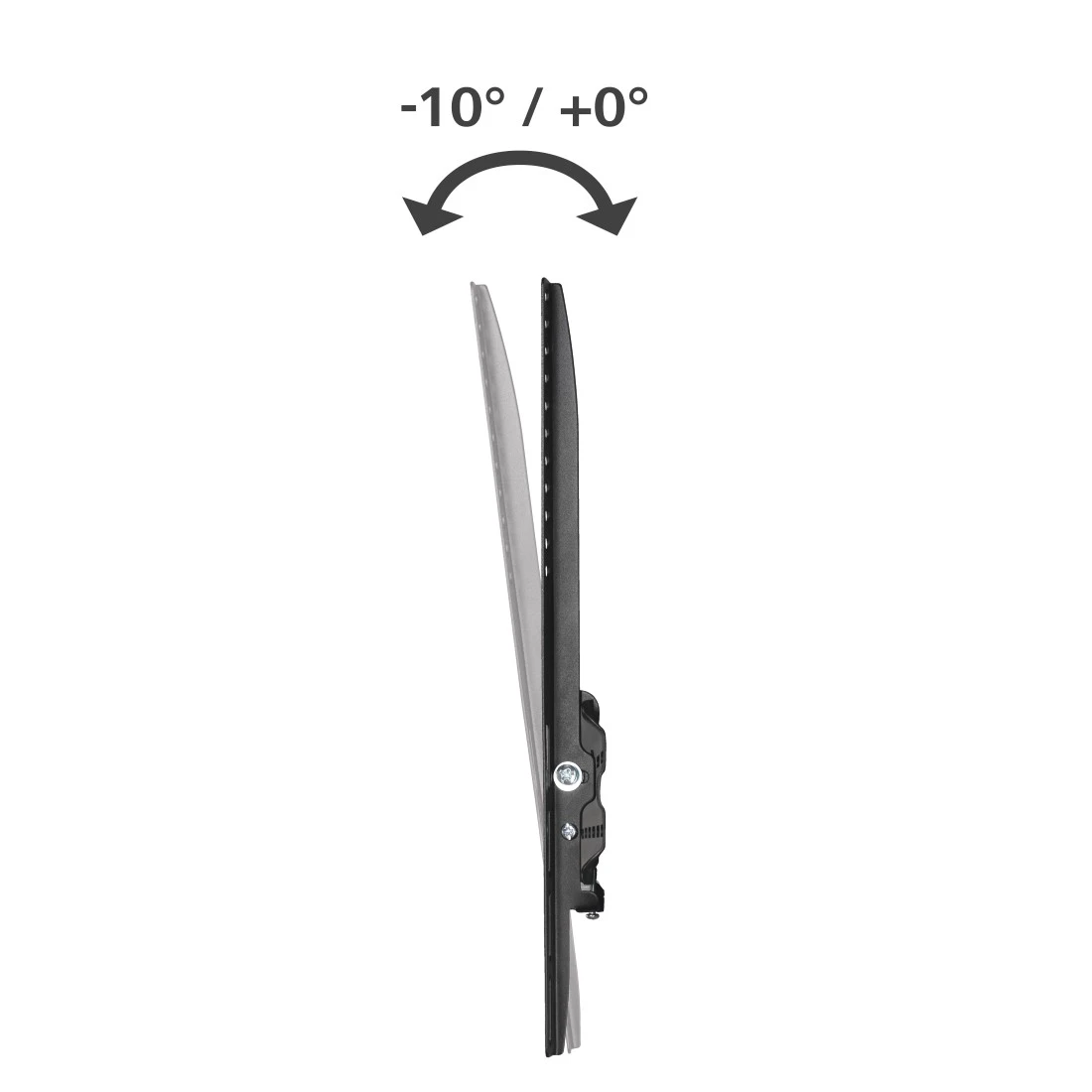

    • Continuous -10° tilt
  • What's in the Box
    • 1 TILT TV wall bracket

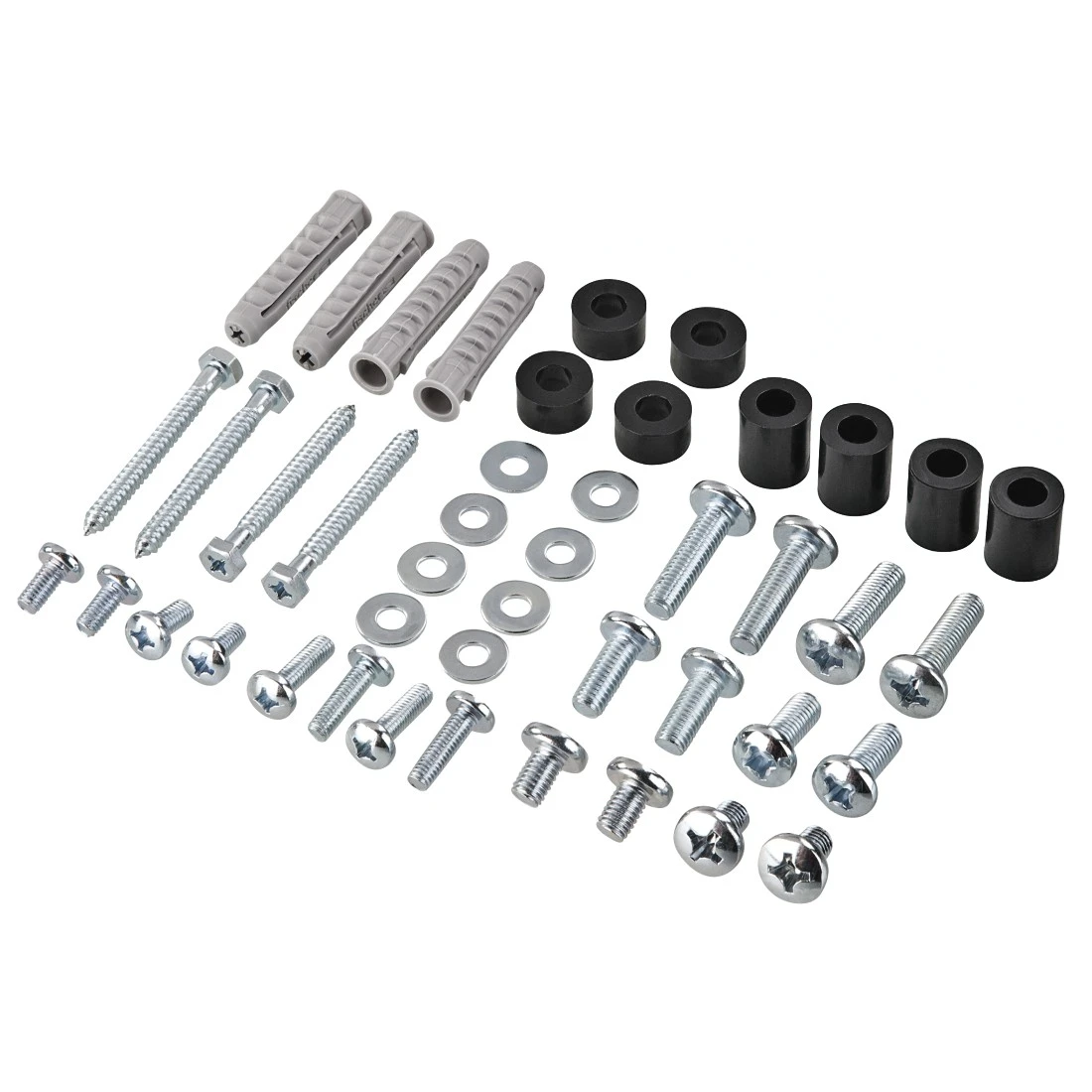

    • Mounting hardware
    • 1 spirit level
    • 1 installation instructions
  • Note for Consumers

    If you want to install your TV set very close to the wall, this TV wall bracket is exactly the right bracket for your needs. If however you want more distance from the wall, simply use the spacer included.

    In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.

    The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please find suitable plugs and screws from a specialist retailer.

  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
