Hama TV Wall Bracket, Swivel, Tilt, Extra-flat, 229 cm (90") up to 40 kg

00220850

Present your high-end TV perfectly: this ultra-flat yet fully mobile wall bracket turns your TV into a picture. Eye-catching technology, a well thought-out concept for your interior design and the perfect home cinema feel!

Price on demand

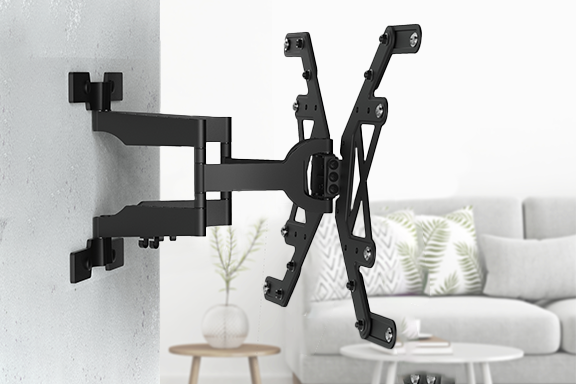

The extra-flat, swivel and tilt Hama TV wall mount is mounted on a wall, with a living room in the background
Hama TV Wall Bracket, Swivel, Tilt, Extra-flat, 229 cm (90") up to 40 kg

The ultra-slim route to the home cinema season

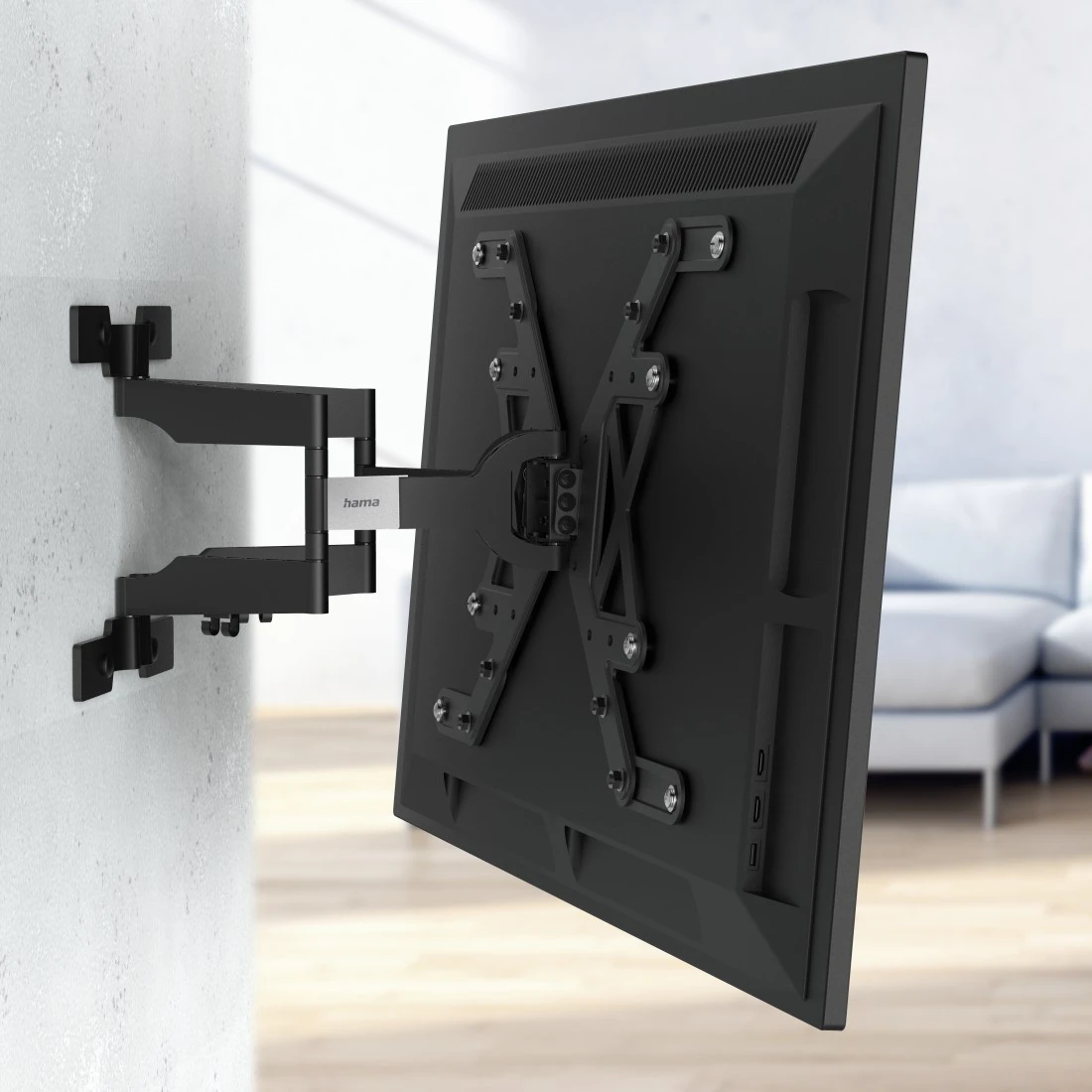

Do you want your new, ultra-flat OLED TV to stand out prominently in your living room? Then we have the ideal innovative TV wall mount for you: our super-flat and at the same time fully mobile mount turns your flat-screen TV into a design element on the wall - like a painting in a museum.

Eye-catcher flat screen TV

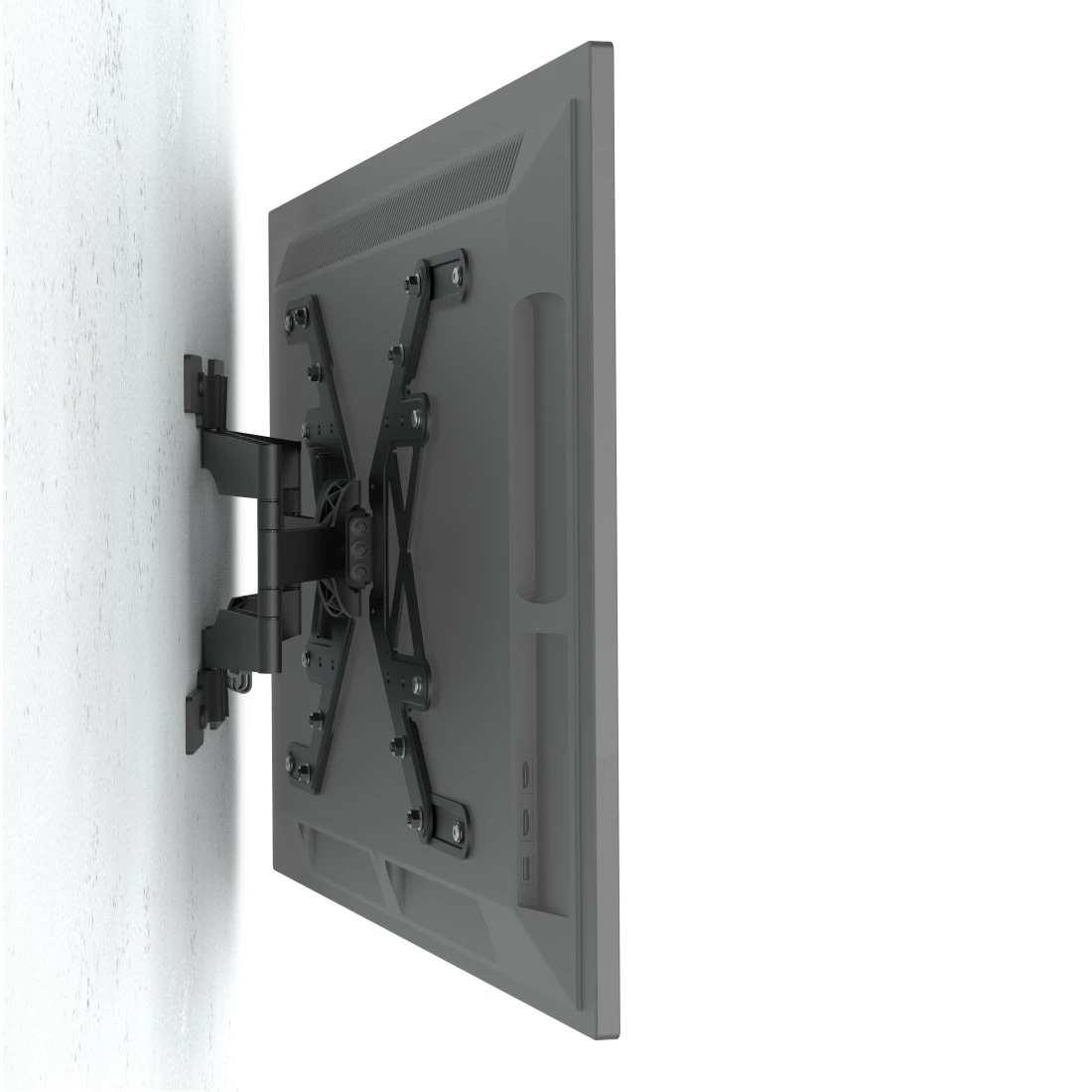

The new generation of super-flat high-end TVs also requires a new generation of TV mounts. And look, we have them! The TV wall mount has a distance of just 32 mm between the TV and the wall. This is a very small distance from the wall for a fully mobile wall mount. For your home, this means that your TV is mounted on a barely visible wall bracket. This turns the flat-screen TV into a style element and work of art - a discreet but all the more expressive eye-catcher in the home cinema.

Maximum safety

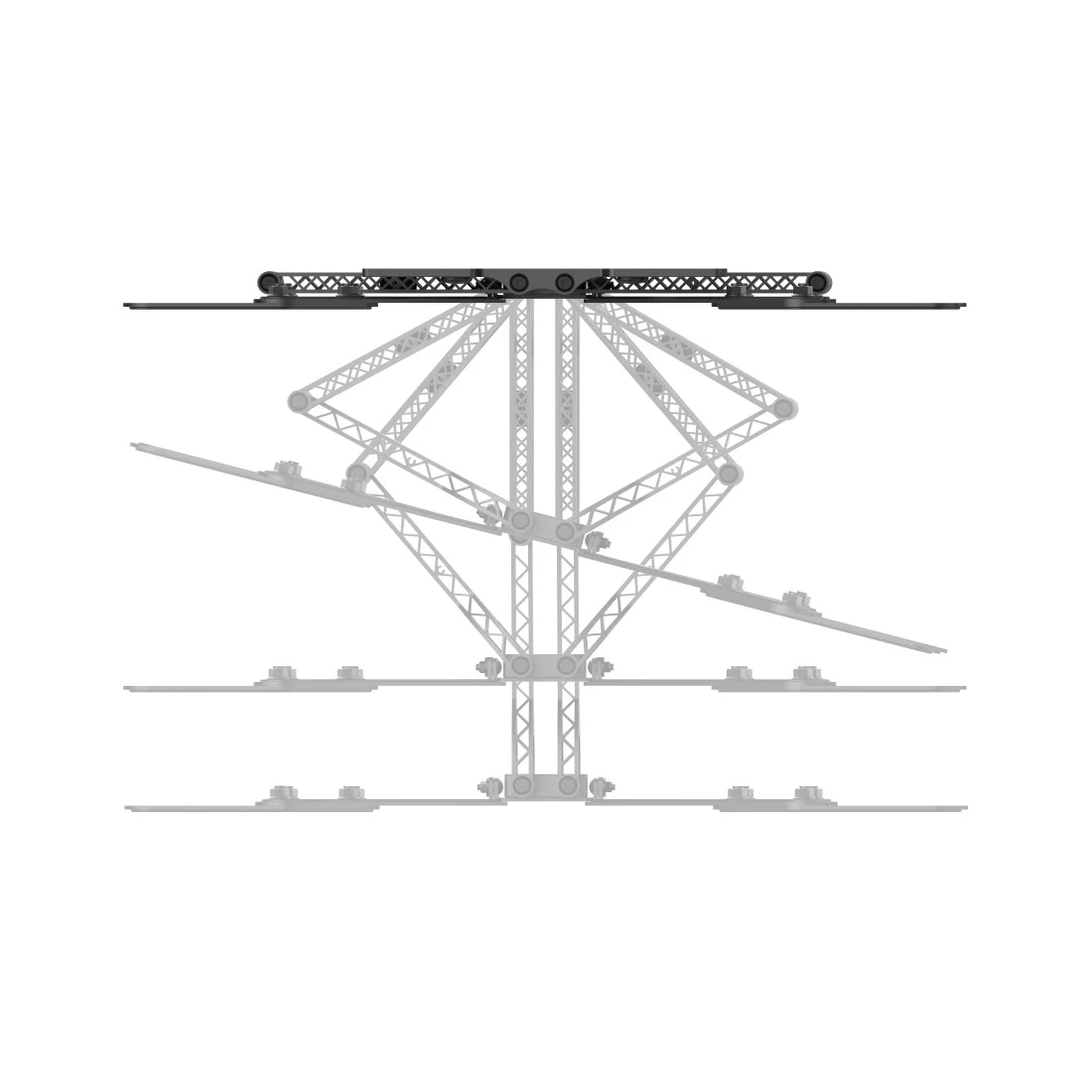

Your OLED television is in the best hands with our TV wall mount. We tested the load, stability and function in detail - and the TV mount passed with flying colours! The honeycomb construction on the arms makes the TV mount extremely stable - this is what makes the ultra-slim design possible in the first place. The honeycomb design also distributes the weight evenly and transfers it perfectly to the wall. Your expensive television hangs securely and firmly on the wall with our TV mount!

Brings movement to life

Anyone who wants to enjoy a cinema experience of the highest home entertainment standards within their own four walls today attaches great importance to design, but also to functionality. That's why our TV mount is not only super-flat, but also fully mobile - i.e. it can be swivelled and tilted in all directions. Thanks to the movable swivel arms, you can swivel even very large TVs easily and widely. The arms also ensure greater stability and even weight distribution. This means you always have the perfect viewing angle for your favourite blockbuster, football final or series marathon - no matter what position you are in.

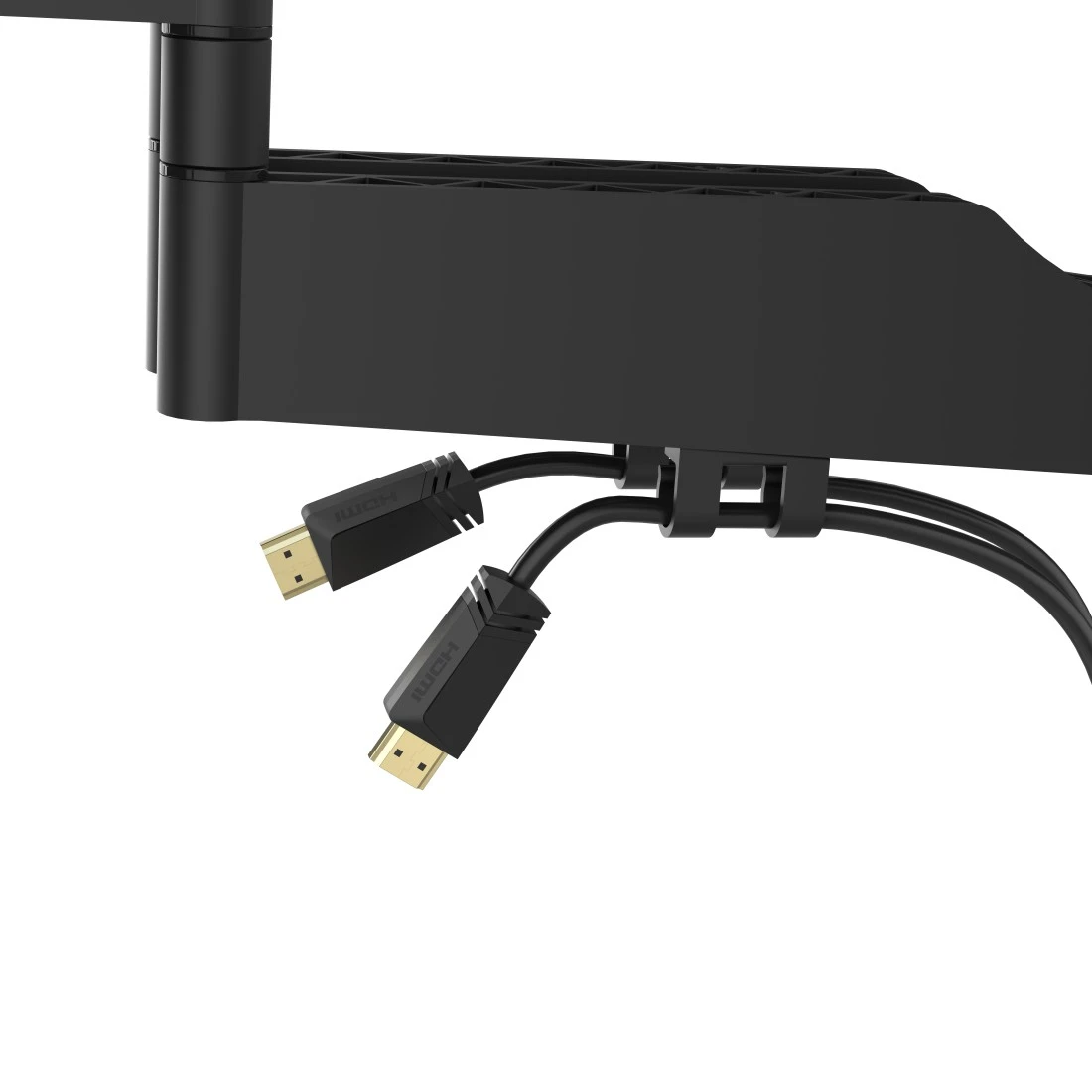

Clever cable management

The TV is now perfectly staged - but what about the cables? Naturally, we have the overall work of art in mind and have therefore integrated a cable manager. This means that the cables do not dangle loosely along the wall, but are instead neatly stowed away. Practical additional effect: this provides the cables with strain relief, which extends the service life of your high-quality cables.

Straightforward assembly

With VESA dimensions up to 600x400, the ultra-flat and fully mobile wall mount is suitable for all standard TV models. With this standard we also cover the VESA standard 300x300 of many TVs. You don't need to buy any extra materials for installation - we supply all the mounting materials you need for the wall and TV. High-quality Fischer plugs ensure a secure fit in the wall. If the TV set is not exactly in the desired position in the VESA wall mount after installation, you can still make the final fine adjustment in your home cinema using the slotted holes. With a 10-year guarantee, nothing can go wrong, really!

Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

10-year warranty

10-year warranty: a warranty promise on longevity that goes far beyond the statutory guarantee

Tested quality

Make a safe choice with our tested safety: exacting stress, stability and functional tests guarantee high quality standards

Fully mobile TV bracket

For the perfect viewing angle: this TV bracket adapts to your individual needs, whether they be for swivel, tilt or pull-out. This is how home entertainment works

Ultra-flat profile

Ultra-flat TV wall bracket allows modern and compact living space design

Small wall spacing

With the small wall spacing, the TV bracket blends unobtrusively into the living space

Cable manager

Cable manager provides organisation and necessary strain relief

Easy-Fix system

Quick and easy to position every time: with just one action, you can orientate the TV spontaneously to match your needs - without any tools at all

Rebalancing

If the TV bracket has been mounted slightly at an angle on the wall, the position of the TV can be corrected by a few degrees horizontally

Drilling template for marking the drill holes

The drilling template means easy marking of the drill holes without having to hold the bracket up against the wall

Includes mounting material

Everything included: with the diverse mounting accessories, including high-quality Fischer plugs, you can get started straight away

FSC

FSC-certified: the paper and cardboard used in our packaging comes from sustainable forest management - enabling us to take a resources-sparing approach to the raw material of wood

Plastic-free

Packaging with a clear conscience: our packaging is 100% plastic-free, enabling us to reduce plastic waste and increase its recyclability

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour Black
    Shade of colour Black
    Quality
    Quality Ultraslim
    Physical Properties
    Additional Functions Cablemanager, Double arm
    Hole Size Attachment Up to M8
    Material Aluminium Cast, Metal
    Maximum Load Capacity 40 kg
    Maximum swivel range 120 °
    Model OLED TV
    number of joints 4
    Projection maximum 41.6 cm
    Projection minimum 3.2 cm
    Rotation 6 °
    Tilt +/- 3 / 12 °
    Size & Weight
    External Dimension (Height) 44 cm
    External Dimension (Width) 64 cm
    Mounting Plate (Length) 30.8 cm
    Mounting Plate (Width) 27.5 cm
    Screen Dimensions 94 cm (37"), 97 cm (38"), 99 cm (39"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 145 cm (57"), 147 cm (58"), 152 cm (60"), 155 cm (61"), 161 cm (63"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 180 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 208 cm (82"), 213 cm (84"), 216 cm (85"), 218.4 cm (86"), 223,52 cm (88"), 228,6 cm (90")
    VESA (from-to) 100x100 - 600x400
    VESA Standard 100 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 300, 600 x 400
    Field of Application
    Field of Application Private
    Recommended Maximum Screen Size 228,6 cm (90")
    Recommended Minimum Screen Size 94 cm (37")
    Recommended Screen Size 94 - 229 cm (37" - 90")
    Suitable for TV
    Version Extendible/Swivelling/Tilting
  • More product information
    • Full flexibility in the home cinema: whether it be your favourite chair or the sofa corner, with this fully mobile ultra-slim wall bracket, film and series addicts will always be sitting in the VIP lounge. Ideal for flat-screen TVs with a screen diagonal of 94 to 229 cm (37" to 90")
    • TV wall bracket especially suited for ultra-flat OLED televisions, allows optimal positioning of the flat-screen TV in any room, ideal for open-plan living rooms
    • Thanks to the innovative design, the wall bracket is virtually invisible when folded together
    • Up to -12/+3° continuous tilt
    • 2 movable swivel arms for greater stability and even weight distribution, up to 120° swivel range
    • Supports all VESA standards up to 600 x 400
    • With small spirit level for easy and quick installation
    • Design developed in Germany
  • What's in the Box
    • 1 TV wall bracket
    • Installation material incl. Fischer plugs
    • 1 spirit level
    • 1 installation instructions
  • Note for Consumers

    In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.

    To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.

  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
  • Warranty
    Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00220850 TV Wall Bracket, Swivel, Tilt, Extra-flat, 229 cm (90") up to 40 kg: 10 Years Warranty
    This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
    If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
    The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
    Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.

    In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:

    Hama GmbH & Co KG
    Dresdner Str. 9
    86653 Monheim
    Germany

    We would ask you to appreciate that Hama GmbH & Co KG may reject the
    warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.

    The warranty is valid only for non-commercial users of our product.

    In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.

    Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.


    Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
