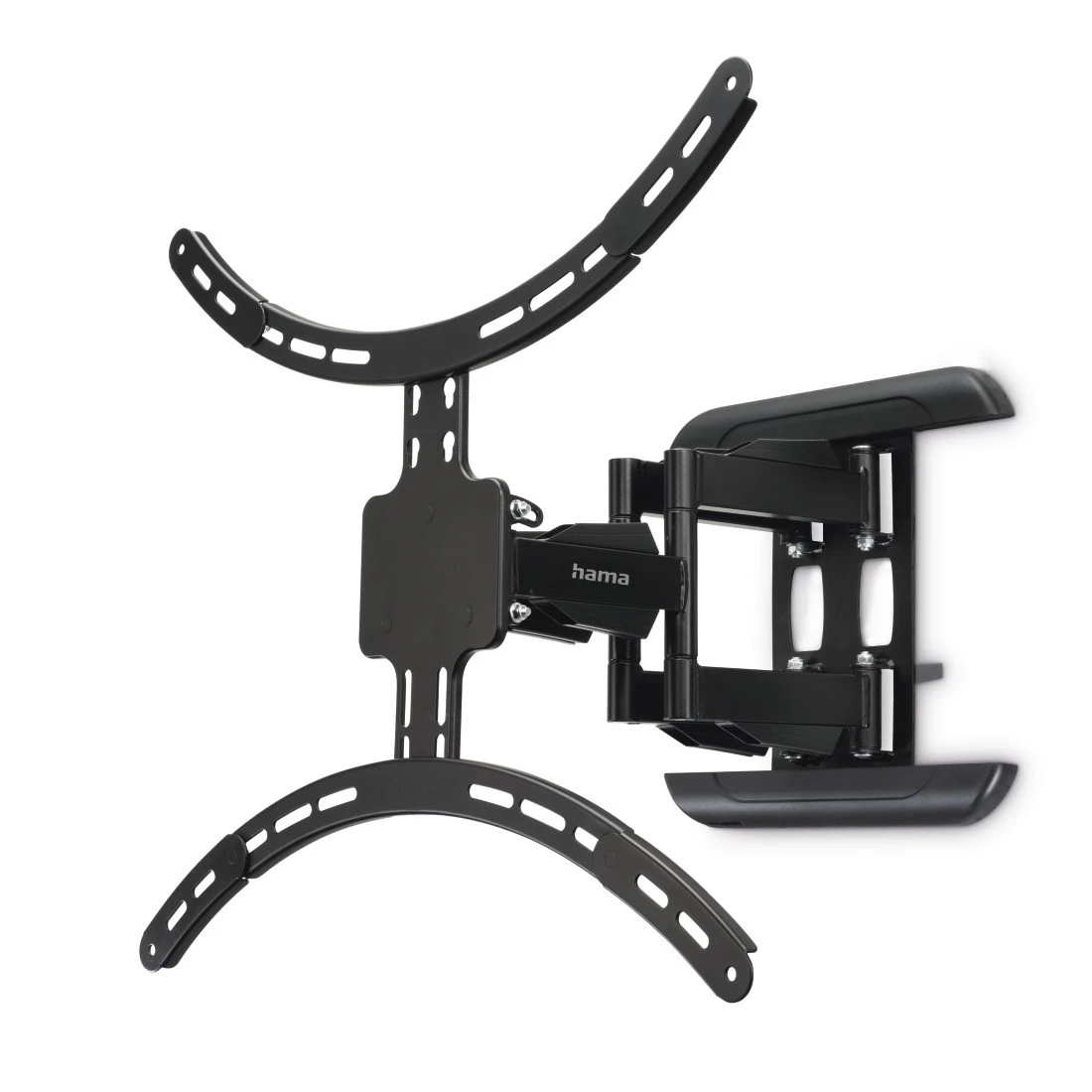

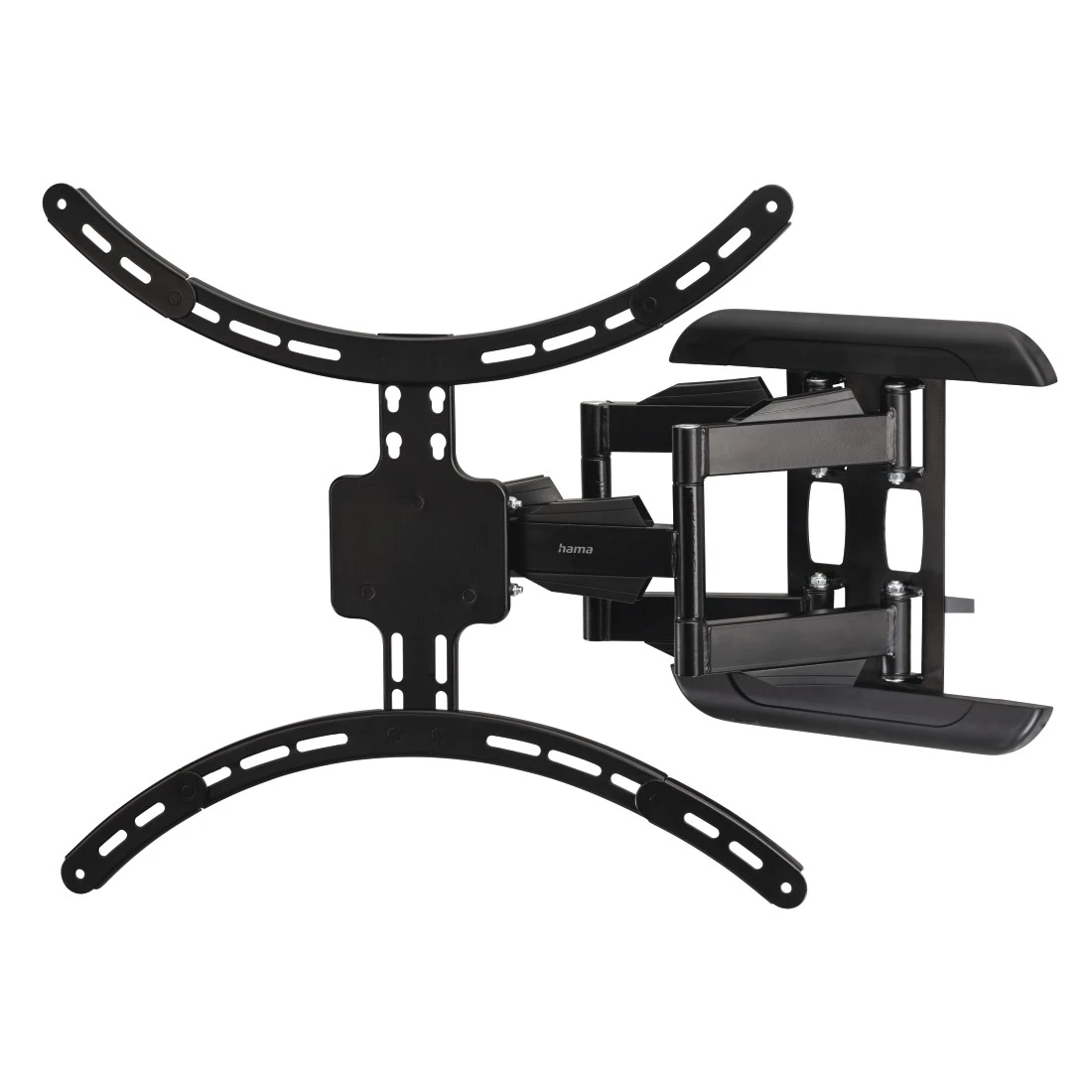

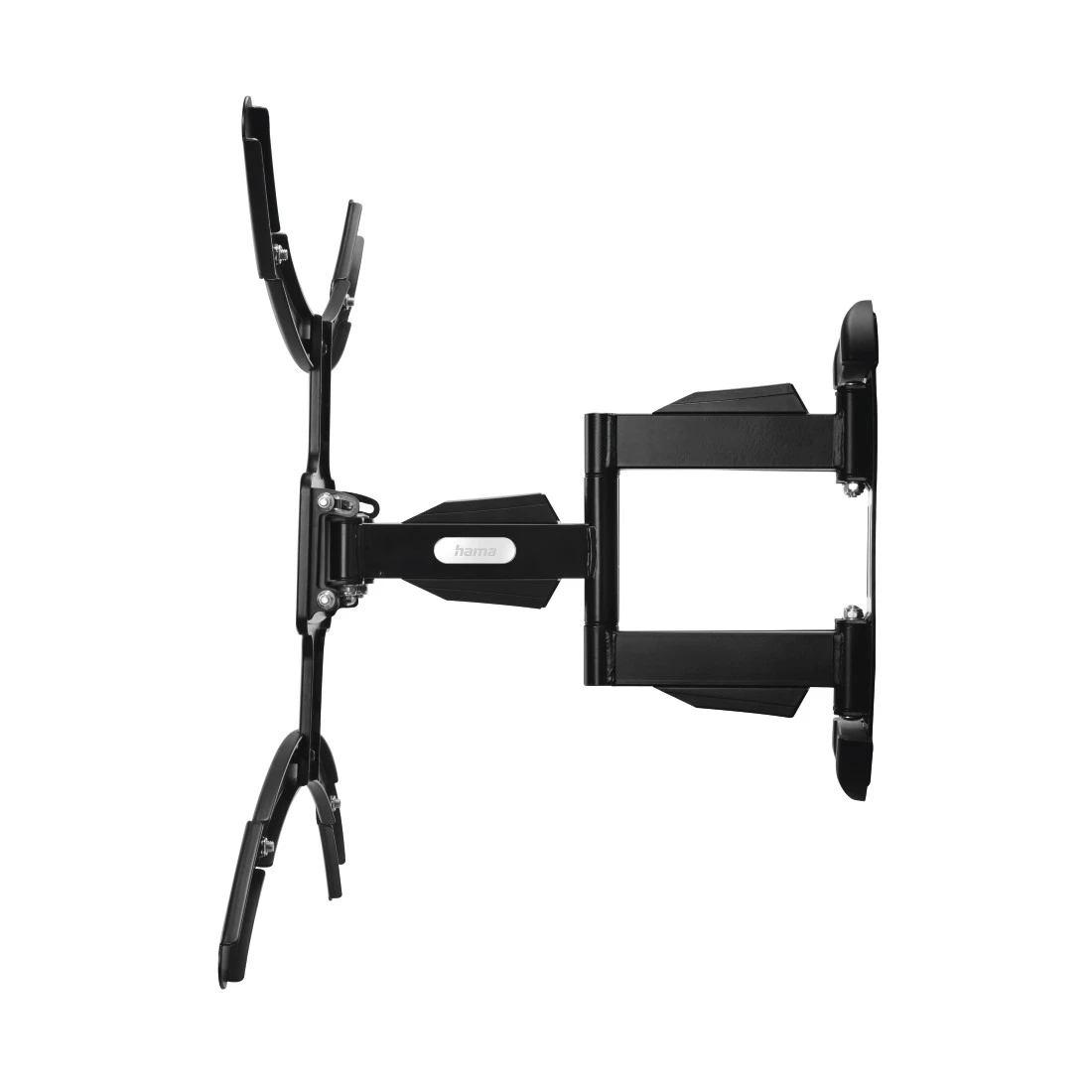

Hama TV Wall Bracket, Swivel, Tilt, Pull-out, 229 cm (90") up to 50 kg

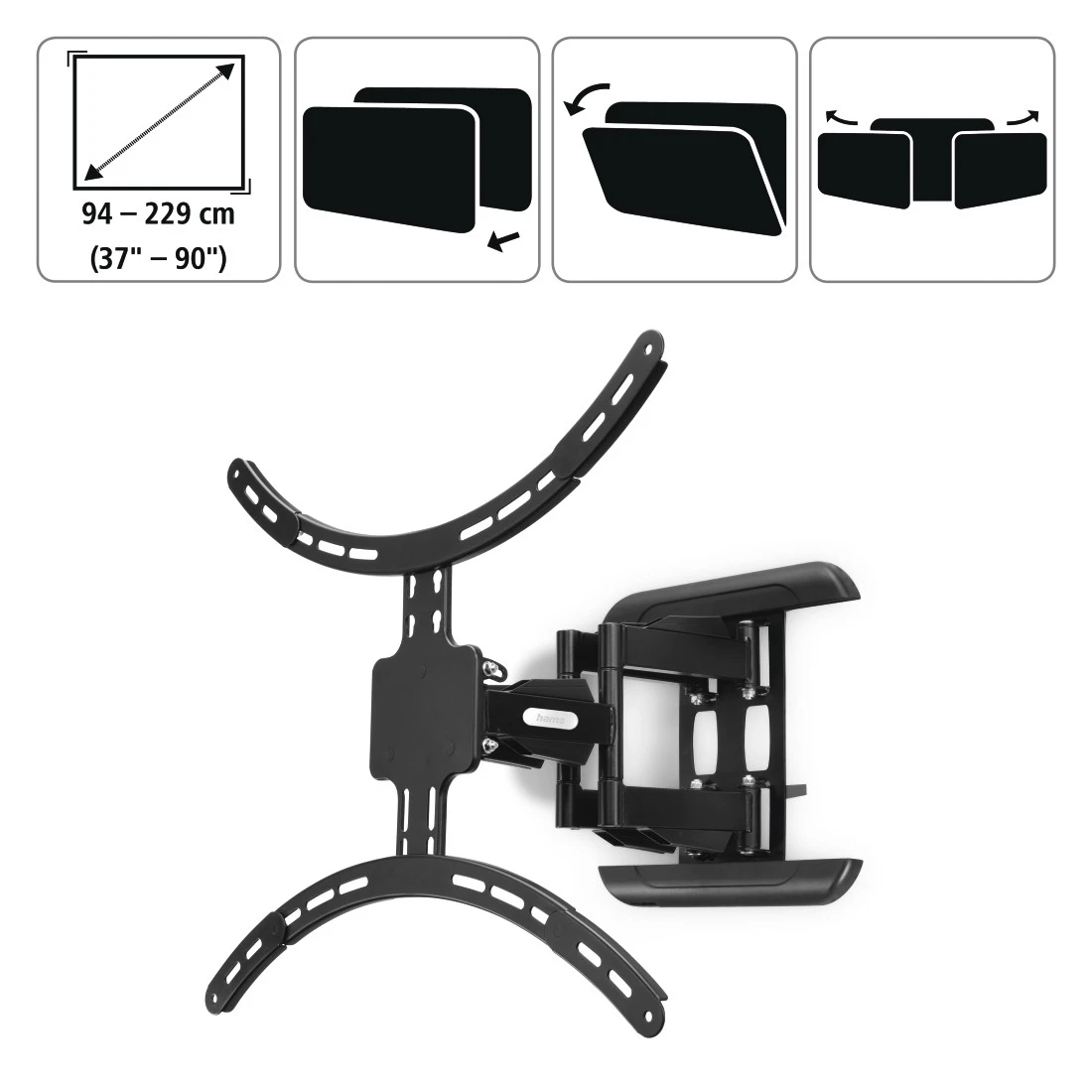

Perfectly adjust even large TV sets: the FULLMOTION TV wall bracket allows maximum flexibility even for heavy, large-format TV sets with a screen diagonal from 94 to 229 cm (37" to 90") and weighing up to 50 kg
Quality based on German standards
Highlights
Fully mobile TV bracket
For the perfect viewing angle: this TV bracket adapts to your individual needs, whether they be for swivel, tilt or pull-out. This is how home entertainment works
Up to 90" and 50 kg
Extremely strong: stable construction with dual arm allows the secure attachment of TV sets with a weight of up to 50 kg and a screen diagonal of up to 90"
TV mounting with VESA standard
Reliable mounting of TV sets with VESA standard from 200x200 to 600x500
Includes mounting material
Everything included: with the diverse mounting accessories, including high-quality Fischer plugs, you can get started straight away

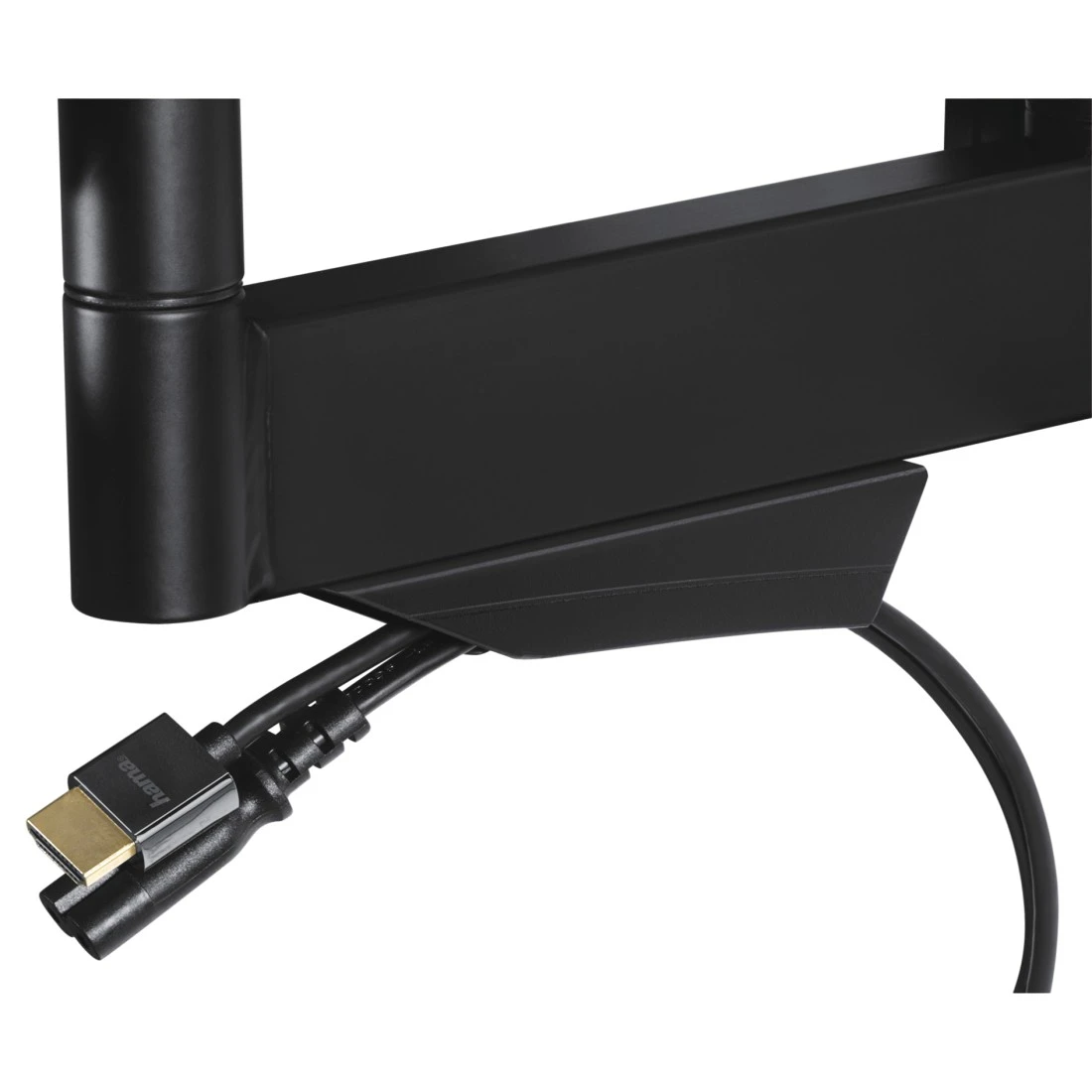

Integrated cable management
For a tidy living environment: Cable management guides the cables tidily behind the TV set, avoiding cable spaghetti and saving space. The cable guide also protects the cable against breakage thanks to strain relief
Easy-Fix system
Quick and easy to position every time: with just one action, you can orientate the TV spontaneously to match your needs - without any tools at all
Rebalancing
If the TV bracket has been mounted slightly at an angle on the wall, the position of the TV can be corrected by a few degrees horizontally
Tested quality
Make a safe choice with our tested safety: exacting stress, stability and functional tests guarantee high quality standards
FSC
FSC-certified: the paper and cardboard used in our packaging comes from sustainable forest management - enabling us to take a resources-sparing approach to the raw material of wood
Plastic-free
Packaging with a clear conscience: our packaging is 100% plastic-free, enabling us to reduce plastic waste and increase its recyclability
-
Technical Specs
Design (Colour, Pattern, Motif, Series) Colour Black Shade of colour Black Physical Properties Additional Functions Cablemanager, Double arm, Spirit level Hole Size Attachment Up to M8 Material Steel Maximum Load Capacity 50 kg Maximum swivel range 120 ° Model TV number of joints 5 Projection maximum 43.8 cm Projection minimum 6.6 cm Rotation 3 ° Tilt +/- 2 / 12 ° Size & Weight External Dimension (Height) 55.6 cm External Dimension (Width) 63.7 cm Mounting Plate (Length) 35 cm Mounting Plate (Width) 43.7 cm Screen Dimensions 94 cm (37"), 97 cm (38"), 99 cm (39"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 145 cm (57"), 147 cm (58"), 152 cm (60"), 155 cm (61"), 161 cm (63"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 180 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 208 cm (82"), 213 cm (84"), 216 cm (85"), 218.4 cm (86"), 223,52 cm (88"), 228,6 cm (90") VESA (from-to) 200x200 - 600x500 VESA Standard 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400, 600 x 500 Field of Application Field of Application Private Recommended Maximum Screen Size 228,6 cm (90") Recommended Minimum Screen Size 94 cm (37") Recommended Screen Size 94 - 229 cm (37" - 90") Suitable for TV Version Swivelling -
More product information
- Perfectly adjust even large TV sets: the FULLMOTION TV wall bracket allows maximum flexibility even for heavy, large-format TV sets with a screen diagonal from 94 to 229 cm (37" to 90") and weighing up to 50 kg
- Especially suited for extremely large and ultra-flat TV sets, allows optimal positioning of the flat screen TV in any room
- Supports all VESA standards up to 600 x 500

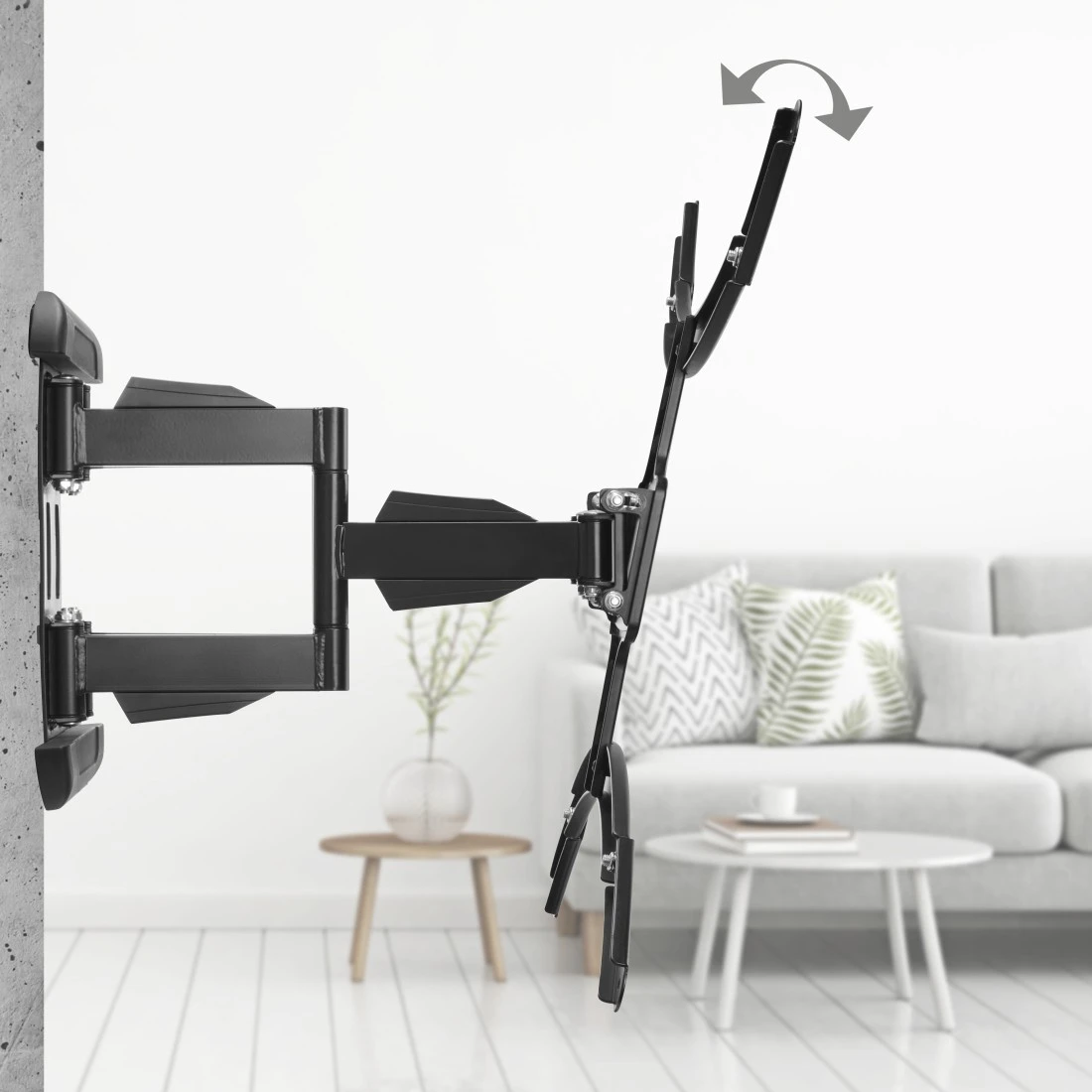

- With the TV wall bracket, the TV set can be continuously tilted around up to -12°/+2°
- 2 supporting arms mean that the TV bracket can be swivelled by up to 120° on 3 hinges and always ensures the best view of what's going on, including across rooms and in large living halls
- With the extendable swivel arm, the distance between the TV and wall can be steplessly adjusted and customised: extension 6.6 cm to 43.8 cm
-
What's in the Box
- 1 FULLMOTION TV wall bracket
- Installation material incl. Fischer plugs
- 1 spirit level
- 1 installation instructions
-
Note for Consumers
In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move. -
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
-
Warranty
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00220837 TV Wall Bracket, Swivel, Tilt, Pull-out, 229 cm (90") up to 50 kg: 10 Years Warranty
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
-
Do I need a separate spirit level to install this?
The spirit level included is only intended as a rough guide. We recommend checking the correct alignment using a calibrated spirit level from a specialist store.
-
How can I correct the position of the TV after installation?
To compensate any slightly skewed TV, loosen the screw connections on the longitudinal holes on the side nearest the wall. If you have enough play on the wall-side mounting element, move it into a horizontal position with the aid of an external spirit level. Then re-tighten the screw connections.
-
Can I also attach my curved TV to the wall bracket?
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
