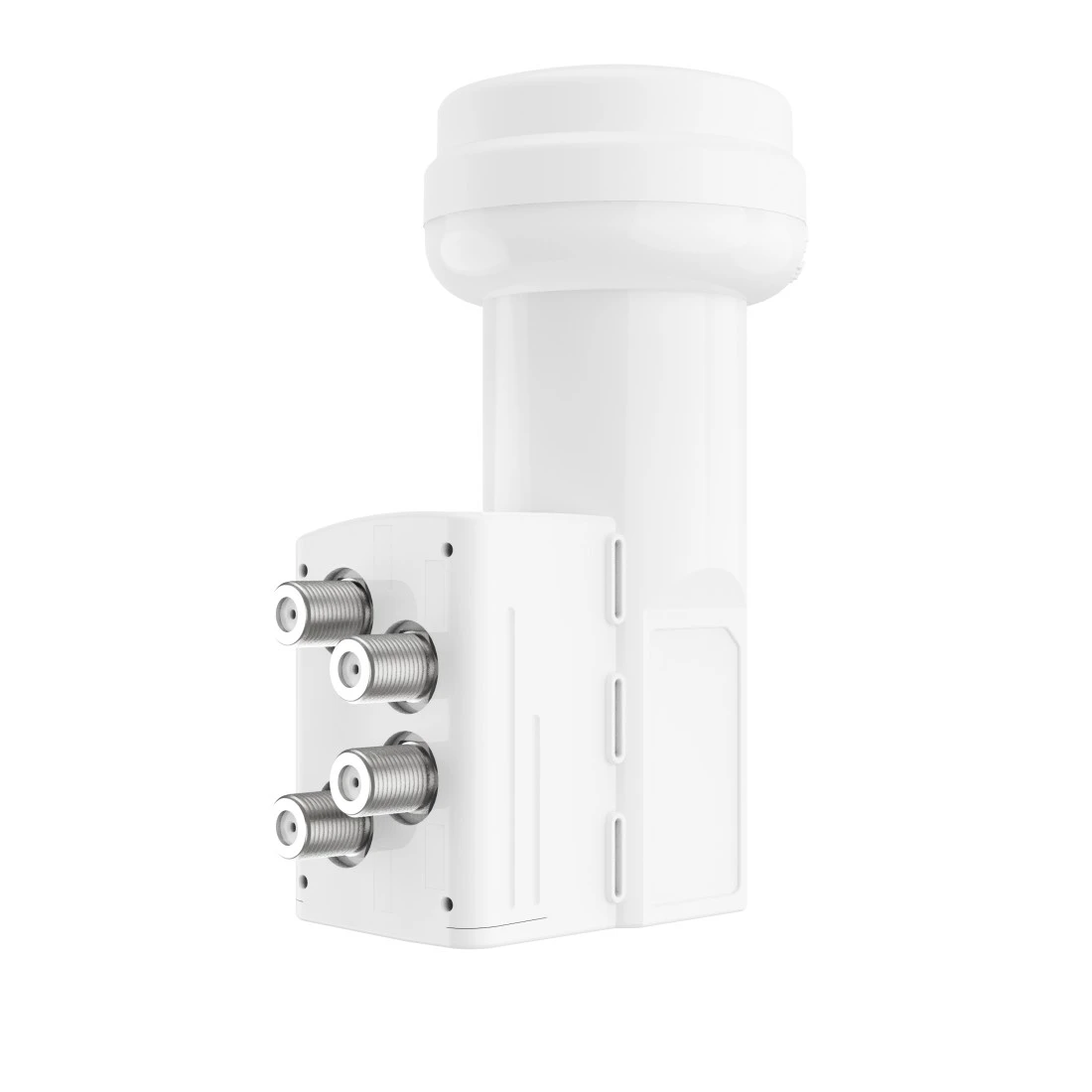

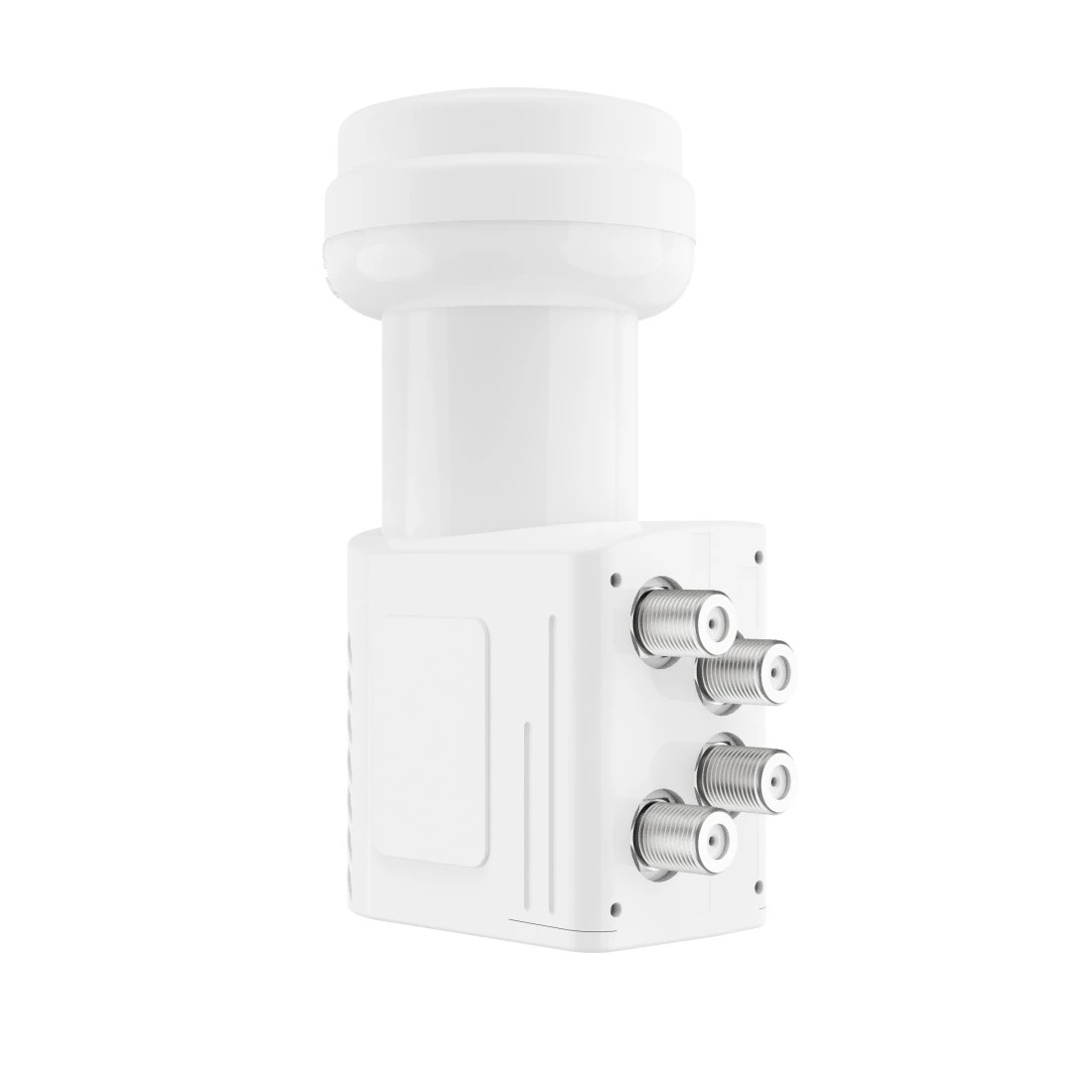

Hama Universal Quad LNB

00205377

For simultaneously connecting four digital SAT receivers or TVs with build-in digital receiver

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Low noise factor of 0.3 dB

Particularly low-noise: the high-quality components used ensure a very low noise factor of max. 0.3 dB

Robust weatherproof housing

Safe protection from wind and weather: the sturdy weatherproof housing protects the LNB and connections and ensures consistently good transmission quality

Connection for 4 receivers

Supply several devices: thanks to the built-in multi-switch, up to 4 digital receivers can be connected directly to the Quad-LNB

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour White
    Shade of colour White
    Connectivity (Connection)
    Output 4x F Socket
    Electrospecific Properties
    Amplification (typically) 61 dB
    Gain (typical) min. x Gain (typical) max. 55 x 68 dB
    Input Frequency Range 10,7 Ghz - 12,75 Ghz
    Noise Factor (typically) 0.3 dB
    Oscillator Frequency 9.75 GHz (L1), 10,6 GHz (L2)
    Output Frequency Range 950-2150 MHz
    Power Consumption (typical) 125 mA
    Switch vertical/horizontal 14V, 18V
    Physical Properties
    Additional Functions 22 kHz switching
    Model Quad-LNB
    Size & Weight
    Feed Horn Diameter 40 mm
  • More product information
    • for simultaneously connecting four digital SAT receivers or TVs with build-in digital receiver
    • For digital reception of SAT programmes such as Astra, Eutelsat or Türksat
    • With integrated multi-switch for 4 participants
    • Ideal for HD, HD+ FullHD, UltraHD UHD 4K and 8K
    • 22 kHz switching between low and high band
    • Weatherproof thanks to extendable weatherproof housing
  • What's in the Box
    • 1 universal quad LNB
    • 1 instruction manual
  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
