LNB

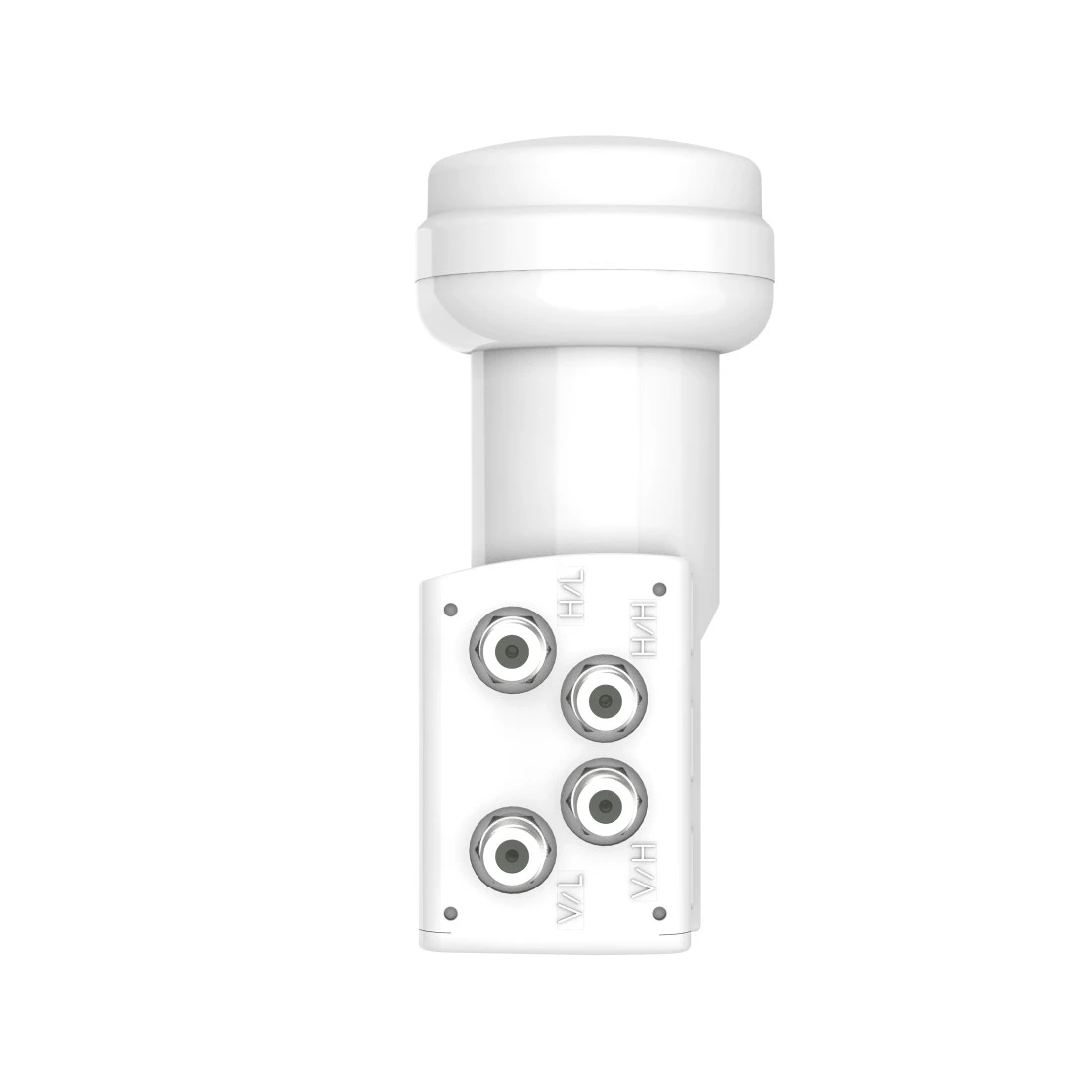

Hama Universal Quattro LNB
00205376
For connecting multiple digital receivers or TVs with built-in digital receiver in conjunction with a multi-switch
Price on demand
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
Highlights
Low noise factor of 0.3 dB
Particularly low-noise: the high-quality components used ensure a very low noise factor of max. 0.3 dB
Robust weatherproof housing
Safe protection from wind and weather: the sturdy weatherproof housing protects the LNB and connections and ensures consistently good transmission quality
Several connections with multi-switch
Supply several devices: thanks to the 4 connections on the Quattro LNB, several digital receivers can be connected directly in combination with an external multi-switch
-
Technical Specs
Design (Colour, Pattern, Motif, Series) Colour White Shade of colour White Connectivity (Connection) Output 4x F Socket Electrospecific Properties Amplification (typically) 57 dB Gain (typical) min. x Gain (typical) max. 53 x 62 dB Input Frequency Range 10,7 Ghz - 12,75 Ghz Noise Factor (typically) 0.3 dB Oscillator Frequency 9.75 GHz (L1), 10,6 GHz (L2) Output Frequency Range 950-2150 MHz Power Consumption (typical) 78 mA Switch vertical/horizontal 14V, 18V Physical Properties Additional Functions 22 kHz switching Model Quattro-LNB Size & Weight Feed Horn Diameter 40 mm -
More product information
- For connecting multiple digital receivers or TVs with built-in digital receiver in conjunction with a multi-switch
- For digital reception of SAT programmes such as Astra, Eutelsat or Türksat
- Ideal for HD, HD+ FullHD, UltraHD UHD 4K and 8K
- With four fixed outputs (HL/VL/HH/VH)
- Weatherproof thanks to extendable weatherproof housing
-
What's in the Box
- 1 universal Quattro LNB
- 1 instruction manual
-
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
