LNB

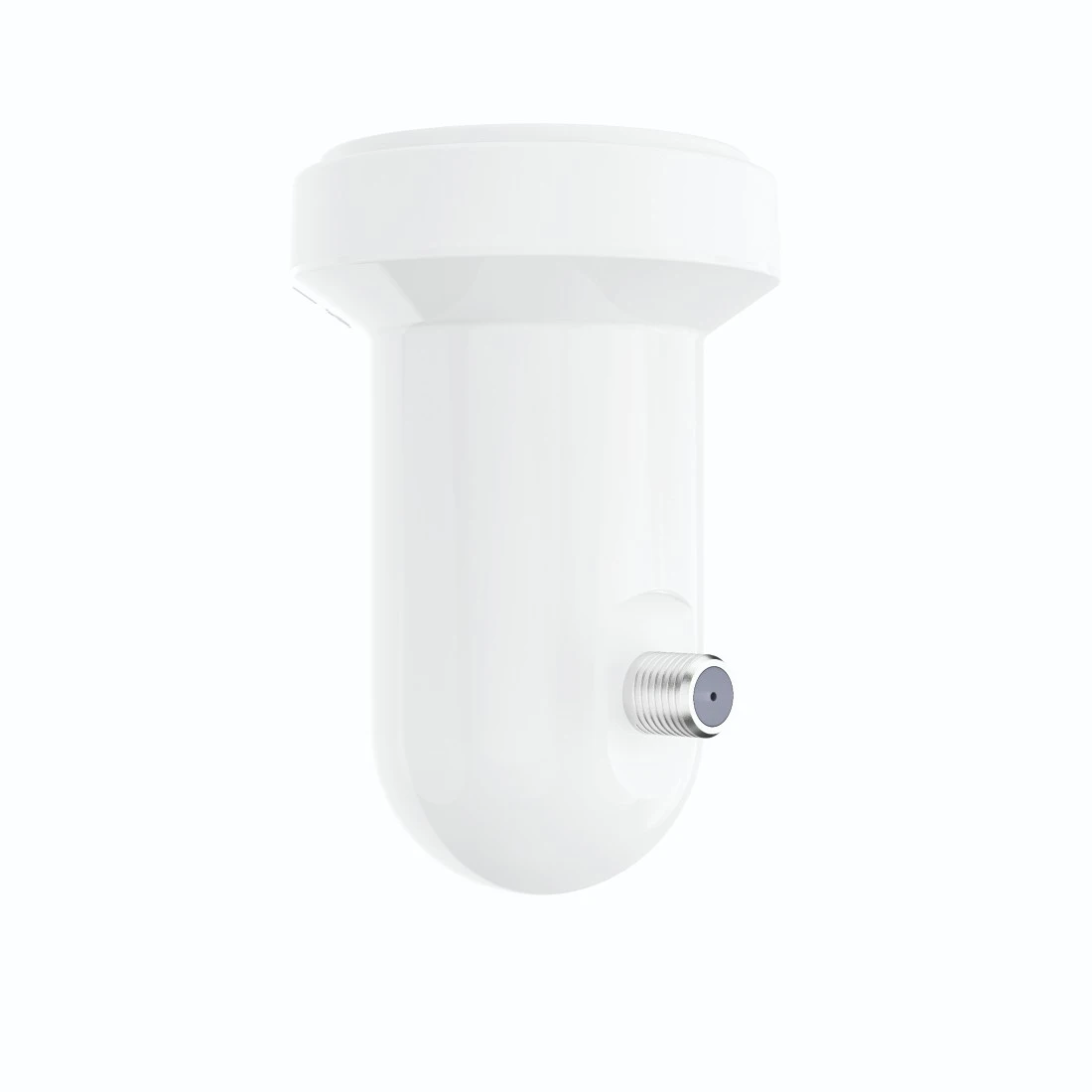

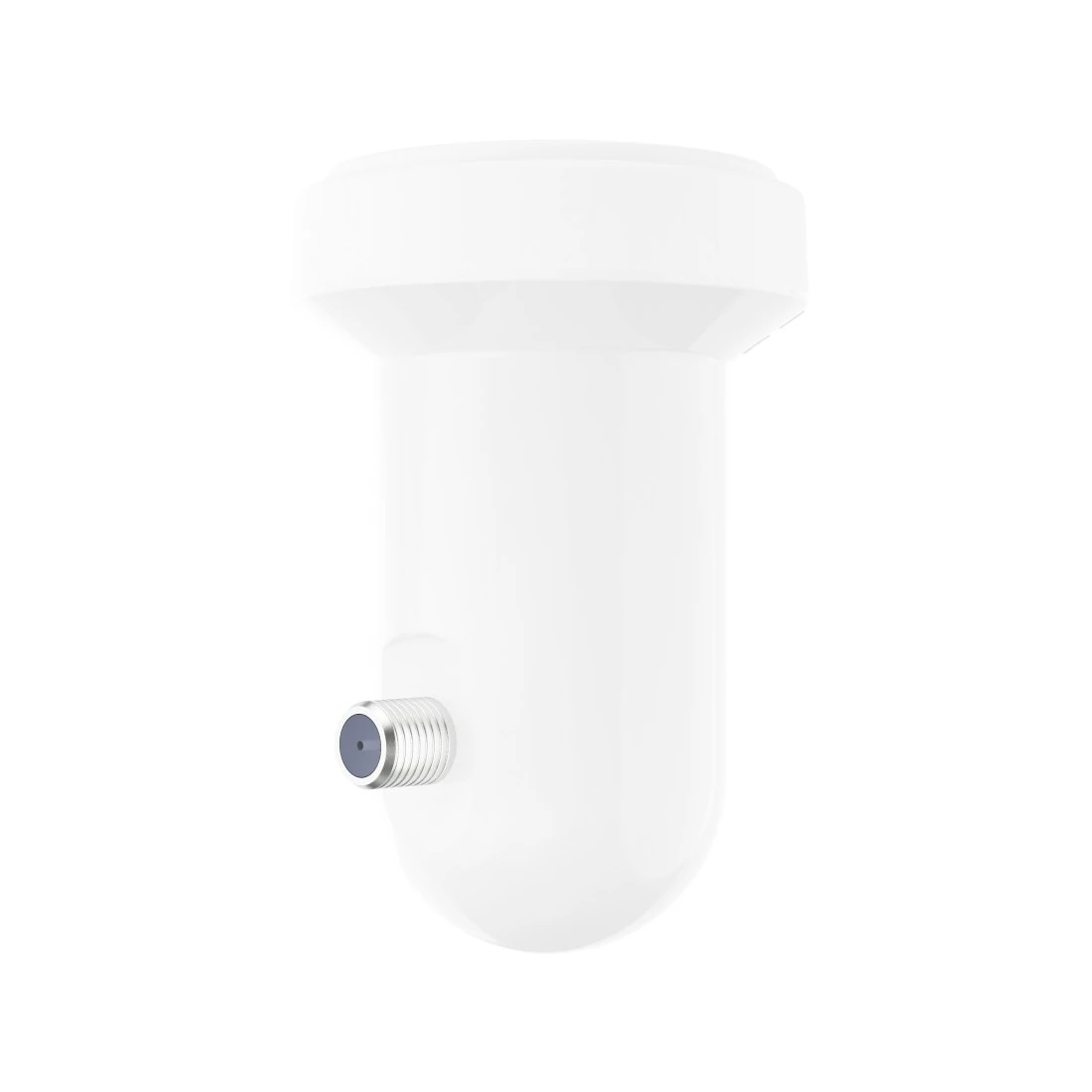

Hama Universal Single LNB

00205374

For connecting to a digital receiver or a TV with built-in digital receiver

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Low noise factor of 0.3 dB

Particularly low-noise: the high-quality components used ensure a very low noise factor of max. 0.3 dB

Weather protection grommet

Insulating cap against wind and weather: the high-quality weatherproof rubber grommet protects the connections and ensures consistently good transmission quality

Connection for 1 receivers

Easy to connect: the single LNB enables a simple connection for a digital receiver

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour White
    Shade of colour White
    Connectivity (Connection)
    Output F Socket
    Electrospecific Properties
    Amplification (typically) 60 dB
    Gain (typical) min. x Gain (typical) max. 55 x 67 dB
    Input Frequency Range 10,7 Ghz - 12,75 Ghz
    Noise Factor (typically) 0.3 dB
    Oscillator Frequency 9.75 GHz (L1), 10,6 GHz (L2)
    Output Frequency Range 950-2150 MHz
    Power Consumption (typical) 90 mA
    Switch vertical/horizontal 14V, 18V
    Physical Properties
    Additional Functions 22 kHz switching
    Model Single-LNB
    Size & Weight
    Feed Horn Diameter 40 mm
  • More product information
    • For connecting to a digital receiver or a TV with built-in digital receiver
    • For digital reception of SAT programmes such as Astra, Eutelsat or Türksat
    • For connecting to a digital receiver or a TV with built-in digital receiver
    • Ideal for HD, HD+ FullHD, UltraHD UHD 4K and 8K
    • 22 kHz switching between low and high band
    • Weather-proof thanks to weather protection grommet
  • What's in the Box
    • 1 universal single LNB with weather protection grommet
    • 1 instruction manual
  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
