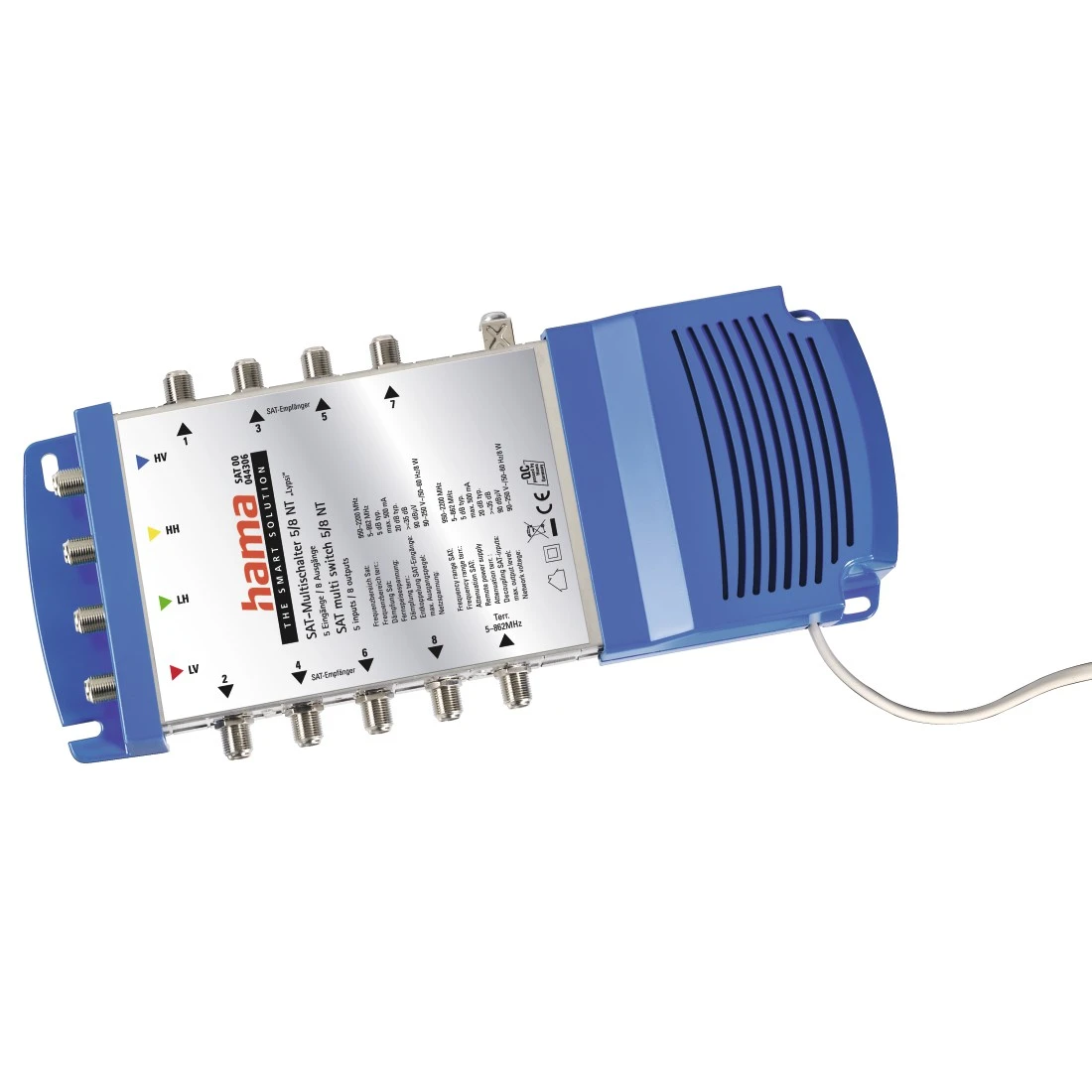

Hama "Lypsi SE" SAT Multiswitch, 5 / 8 NT

00044306

You only have one satellite dish but several receivers? Your wife does not want to watch football, your daughter absolutely wants to see her favourite soap? The multi switch solves all problems: It distributes the signals in a way that everybody can watch what he/she wants to.

Price on demand

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Return path compatible

Return path compatible connection for interactive applications via the terrestrial input

Quad-switch compatible

Connection to quadswitch LNB possible

Decoupling ≥ 35 dB

Decoupling that is especially high for decreased sensitivity to interference from the signal inputs

Technical Specs

Design (Colour, Pattern, Motif, Series)

Productline Essential Line

Connectivity (Connection)

Connection Grounding

Input F Socket

Number of Inputs 5

Number of Outputs 8

Output F Socket

Power connector plug type Euro Plug, Type C (CEE 7/16)

Electrospecific Properties

frequency spectrum terrestrial/SAT 5 - 862 MHz, 47 - 862 MHz, 950 - 2200 MHz

Max. Output Level 90 dBµV

Transmission Loss 6 - 10 dB

Physical Properties

Isolation SAT Outputs (min.) 35 dB

Energy

Line Voltage 90 - 250 V

Max. Remote Supply Current 500 mA
More product information
- Multiswitch for connecting up to eight receivers to one LNB
- With colour coding for easily assigning the cables when connecting the LNB to the multiswitch
- Quad and Quadswitch compatible (22 KHz signal supplied to the LNB)
- With switching power supply for LNB power supply
- Inputs: 4x SAT, 1x terrestrial
- Earth connection: 1x terminal screw
- V/H: 14 V/18 V and 22 KHz switching signal
What's in the Box
- 1 "Lypsi SE" SAT multiswitch
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com

Design (Colour, Pattern, Motif, Series)
Productline	Essential Line

Connectivity (Connection)
Connection	Grounding
Input	F Socket
Number of Inputs	5
Number of Outputs	8
Output	F Socket
Power connector plug type	Euro Plug, Type C (CEE 7/16)

Electrospecific Properties
frequency spectrum terrestrial/SAT	5 - 862 MHz, 47 - 862 MHz, 950 - 2200 MHz
Max. Output Level	90 dBµV
Transmission Loss	6 - 10 dB

Physical Properties
Isolation SAT Outputs (min.)	35 dB

Energy
Line Voltage	90 - 250 V
Max. Remote Supply Current	500 mA
